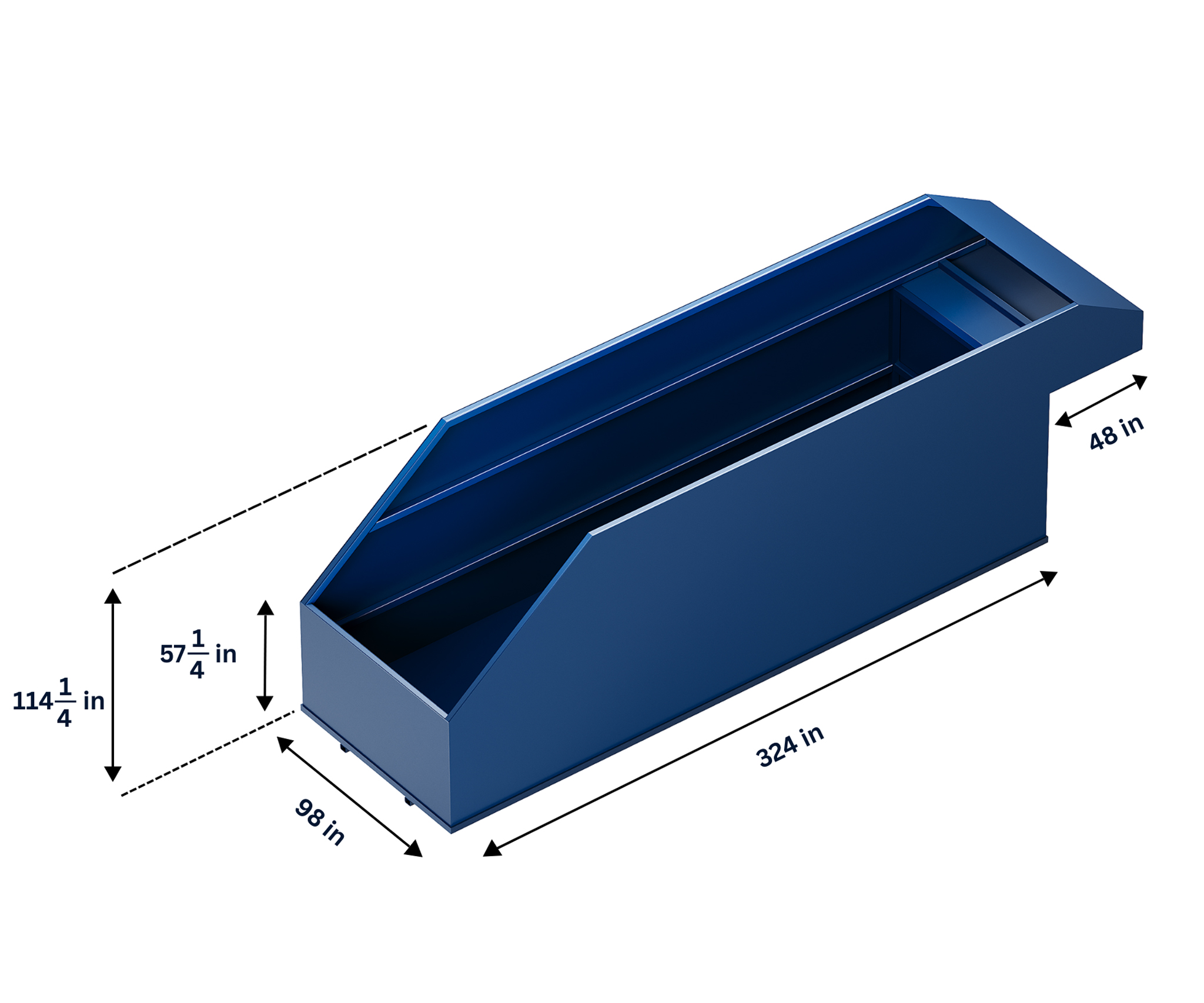

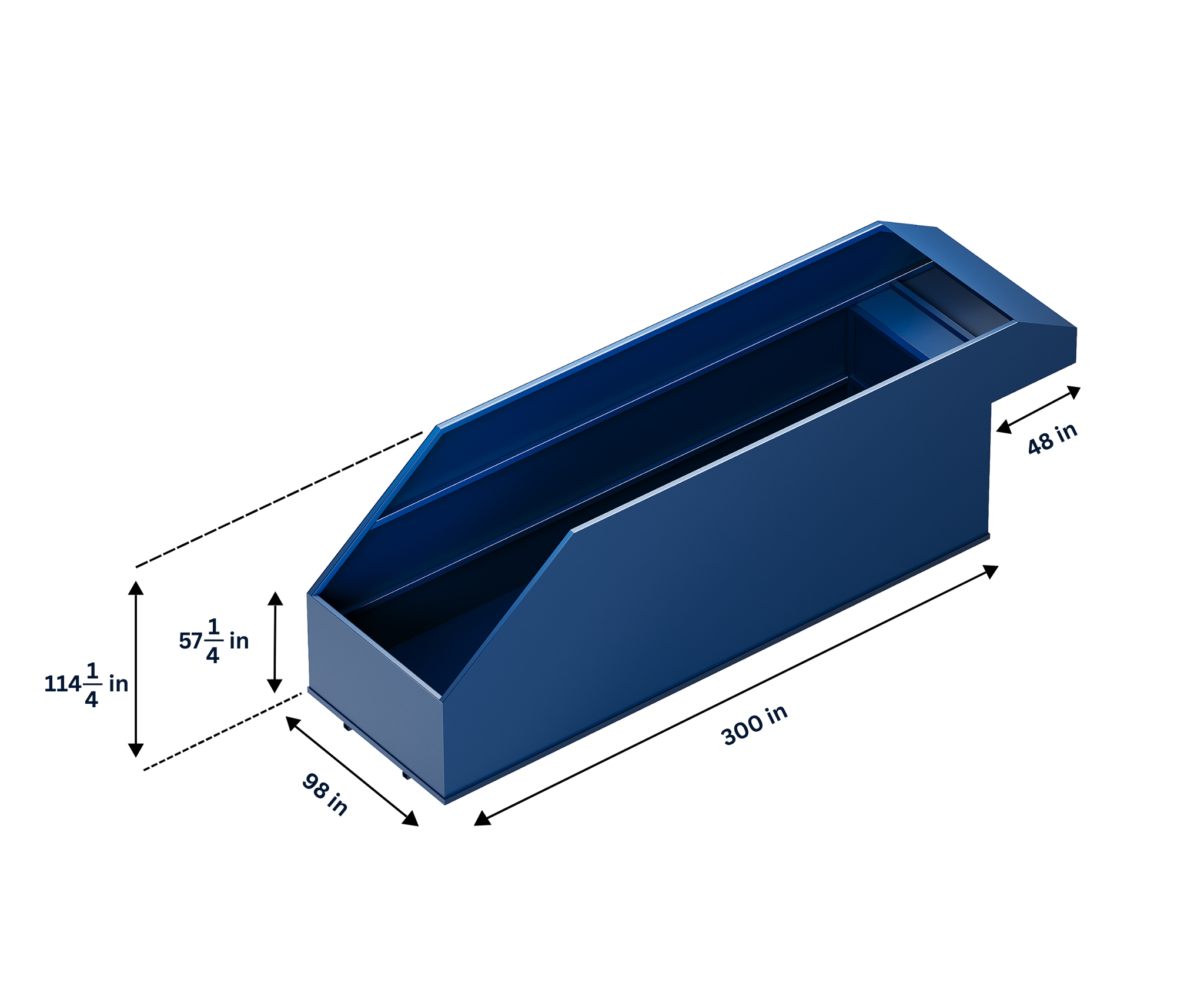

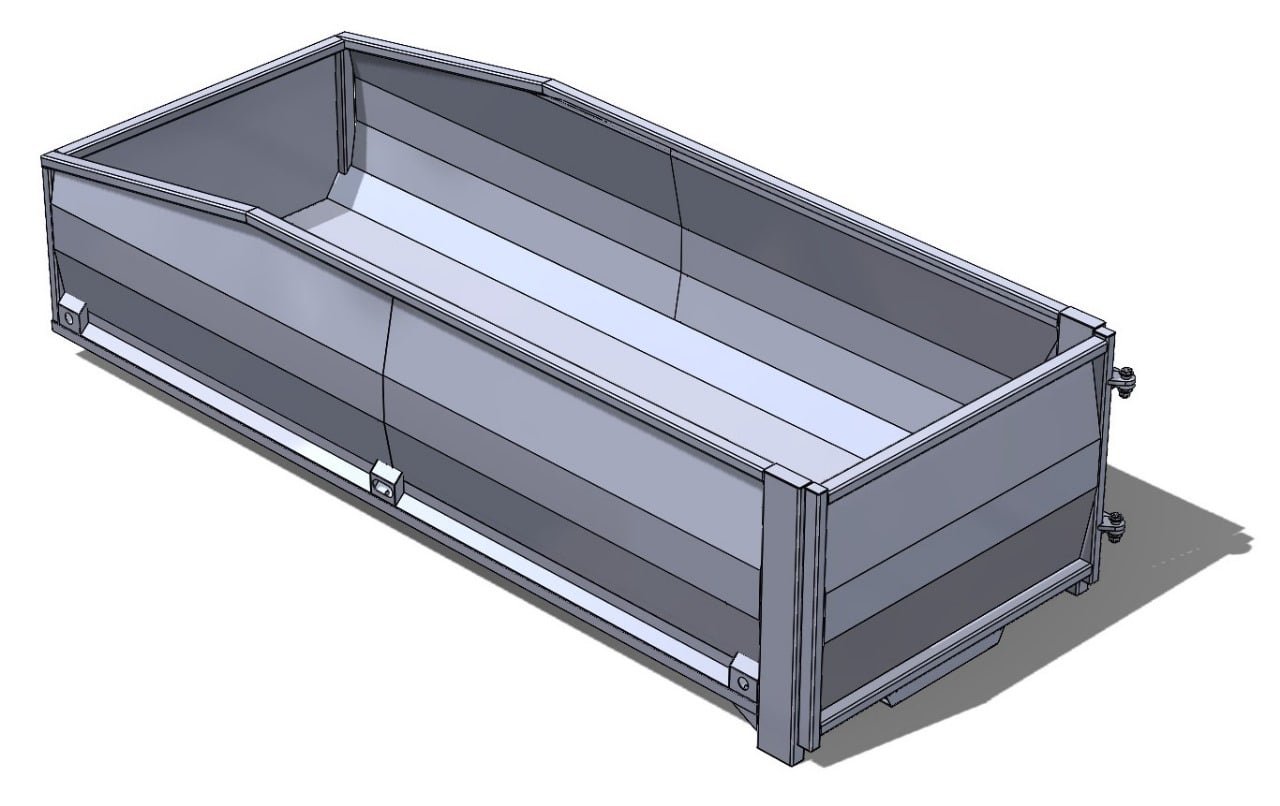

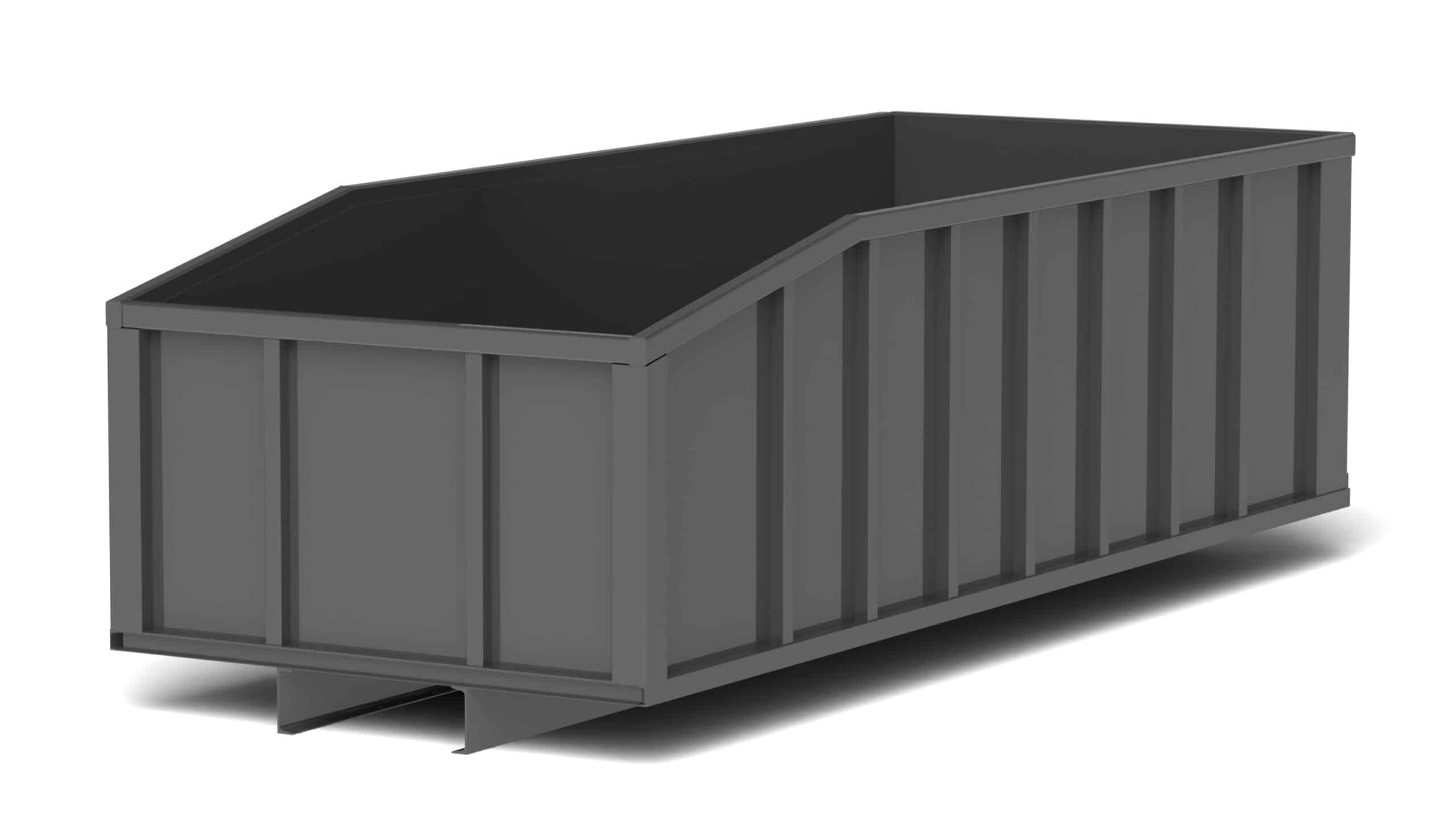

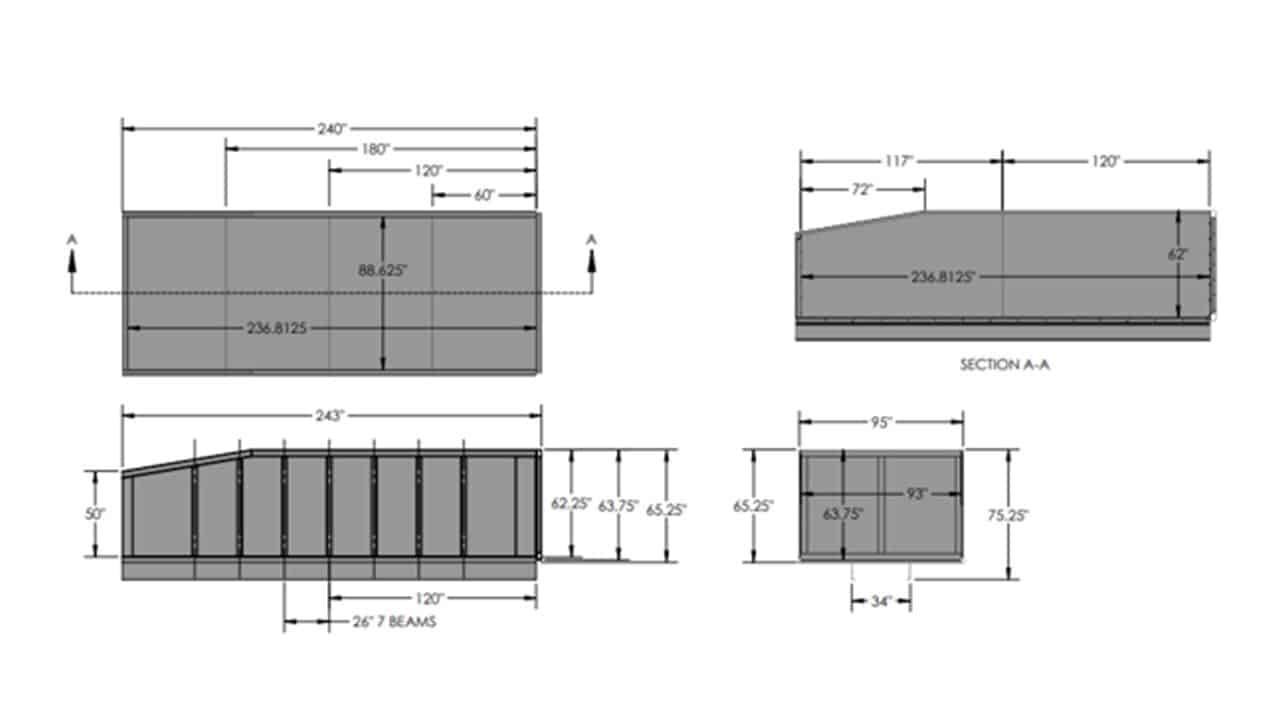

Custom-Built Grapple Truck Body to Your Specifications
Customize the body size, length, height, and steel configuration to serve your needs. As a trusted grapple body manufacturer in the USA, we work closely with you to build a mild steel truck body that fits your exact requirements. Call us today for more information.
Custom options and sizes available
Standard Specifications:
Steel Options: A36 Mild Steel (Standard), AR450 Abrasion-Resistant Steel (Upgrade)
Sidewall Heights: 48″ to 102″ (customizable)
Body Lengths: 14 ft – 27 ft
Floor thickness: ¼” Steel
Side Thickness: 3/16” Steel (AR or A36)
Tailgate: Singel Door or Barn-door

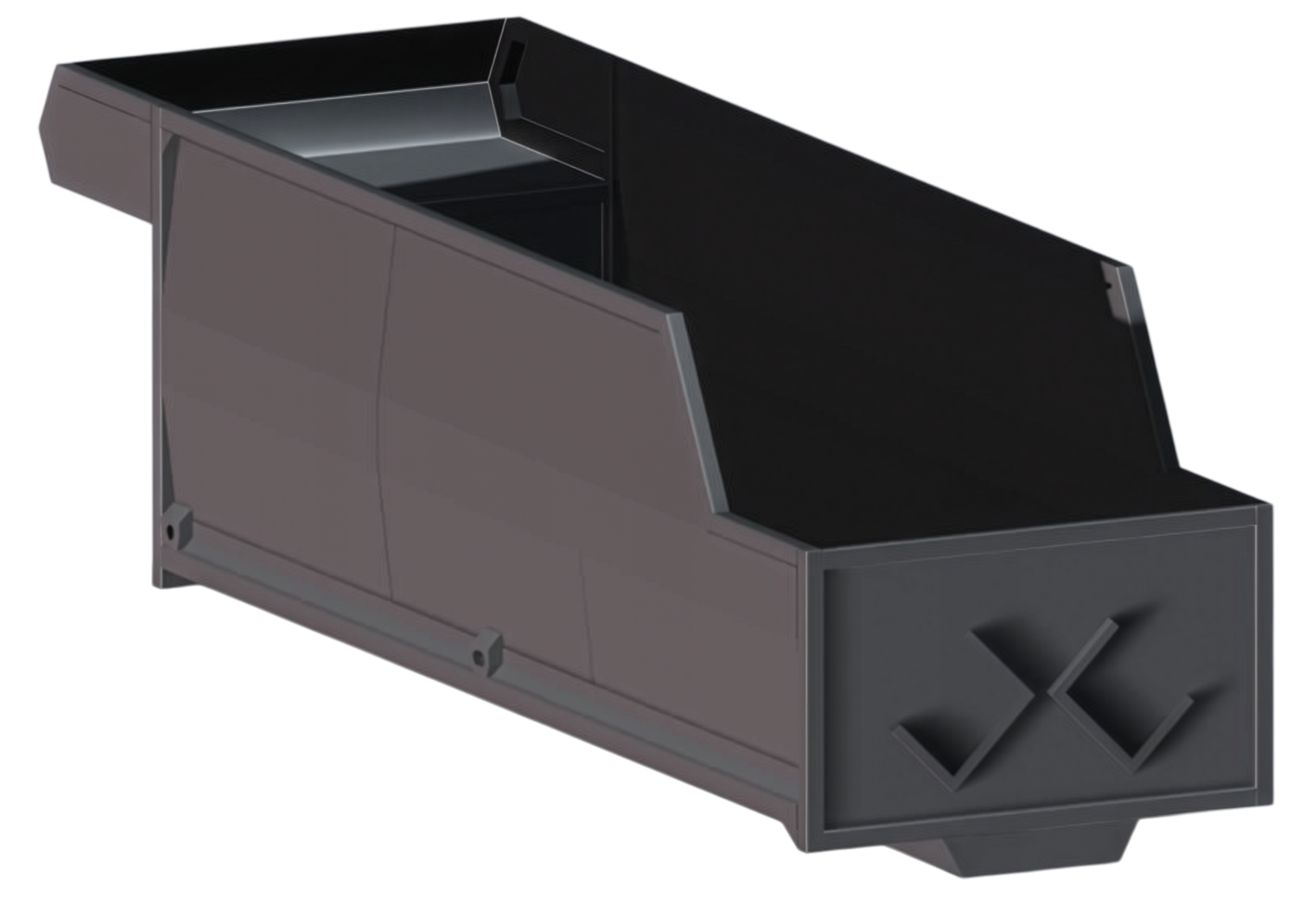

Grapple Location: Rear Mount or Mid Mount
Finish: Primer for automotive paint
Hydraulic Dump Compatibility: Single or dual-cylinder (scissor) configurations
Other options available upon inquiry
